LED-UP Pro

With LED-UP Pro, the pixel mapping and video mixing lighting control program, you can unleash your creativity. It is designed for LED matrix pixel mapping and has a straightforward touchscreen interface for precise control. Quick customization of pixel resolutions and matrix layouts in both 2D and 3D is made possible via intuitive tools.

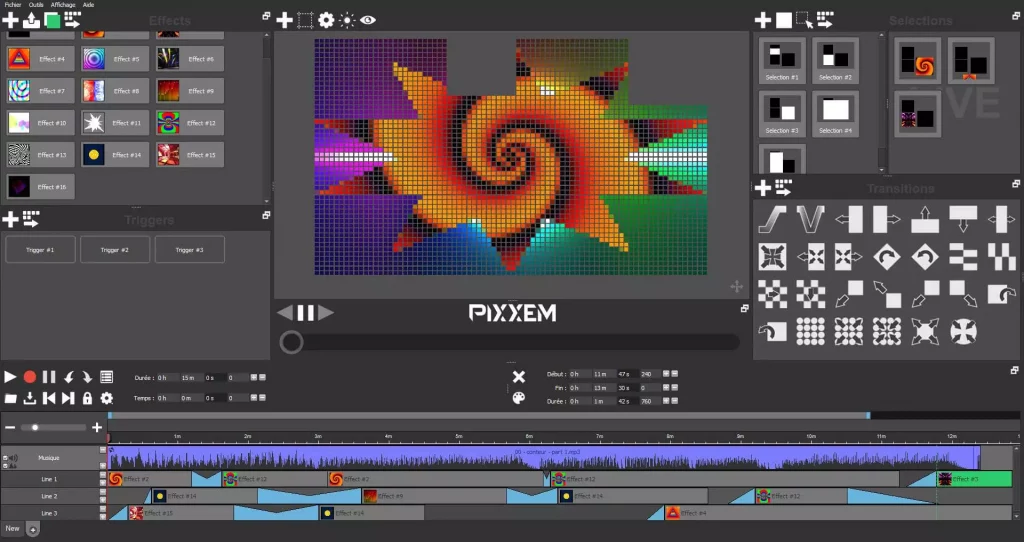

The timeline may be used to smoothly sync audio, video, and lighting, making it appropriate for any pixel production, regardless of size or complexity. With the large library of pre-programmed graphic effects included with LED-UP Pro, you can endlessly alter them to produce breathtaking and one-of-a-kind displays.

Simple integration of many automation and effect light kinds into a matrix transcends conventional RGB pixel control. You can easily create mesmerizing sights and unforgettable displays with LED-UP Pro.

  • Windows & MAC OS X compatible (requires Open GL 4.0 or higher)

  • Suitable for all RGB and RGBW LED Fixtures and panels

  • Up to 20×512 DMX outputs (with 10 devices connected)

  • Up to 255 Art-Net & sACN 512-channel universes on Ethernet

  • Up to 130,560 individual channels or 43,350 RGB pixels

  • High DVI resolution output (1280×1024 / 1,310,720 max. pixels)

  • Compatible with Chromateq device model years 2019 and newer

Easy:

Configure 2D and 3D matrices with ease

Custom:

Tools for advanced configurations

Strips:

LED strip arrangements follow your imagination

DVI Output:

Output a DVI window with up to 1280×1024 pixels for LED screens and large resolution projects (connected device determines upper limit). Optimized DVI output supports high resolutions and optimal refresh rates for visual effects.

DMX / Art-Net Signal:

Standard, Multiple and LED Strip matrices can be created easily and quickly in this mode. Art-Net signal is output from the computer Ethernet network port and carried over local networks (LAN or WLAN).

3D Matrix

A sophisticated solution for patching advanced 3D configurations. The software manages the 3 dimensions on a single matrix, with easy customization of the pixels on the X and Y axes. All the tools needed to realize stunning 3D projects.

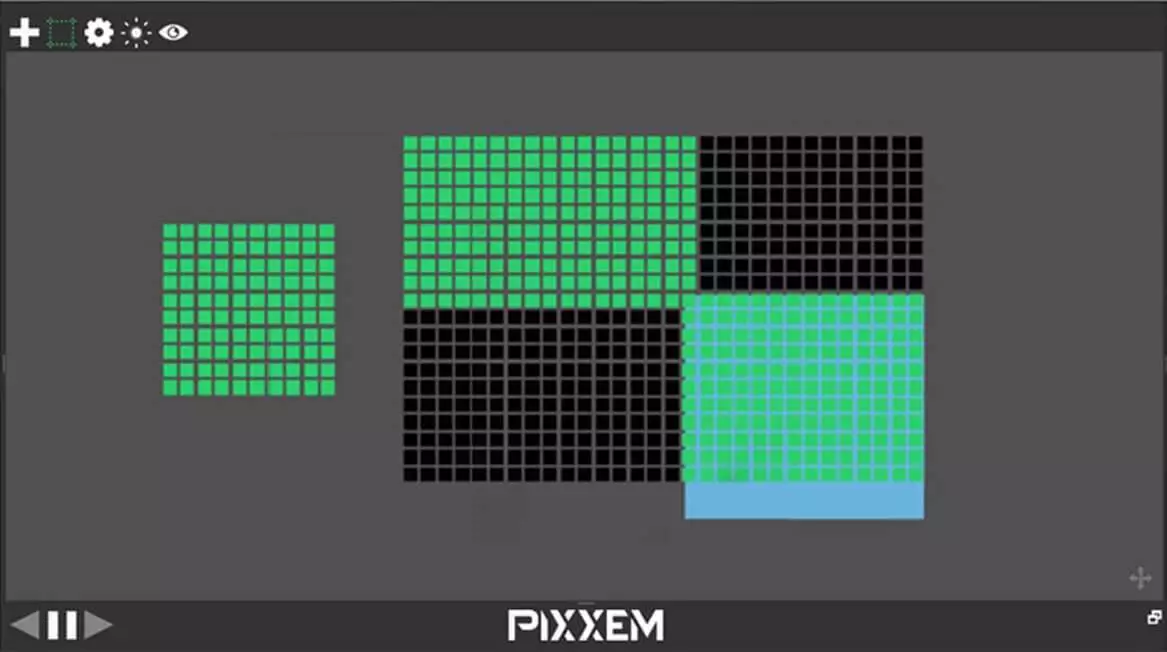

Combine any pixel quantity, matrix size and configuration in the same project. Each matrix can be placed anywhere in the work space. Visual effects play on the currently selected pixels, even if the selection includes multiple matrices, enabling visualization of the entire project across all zones.

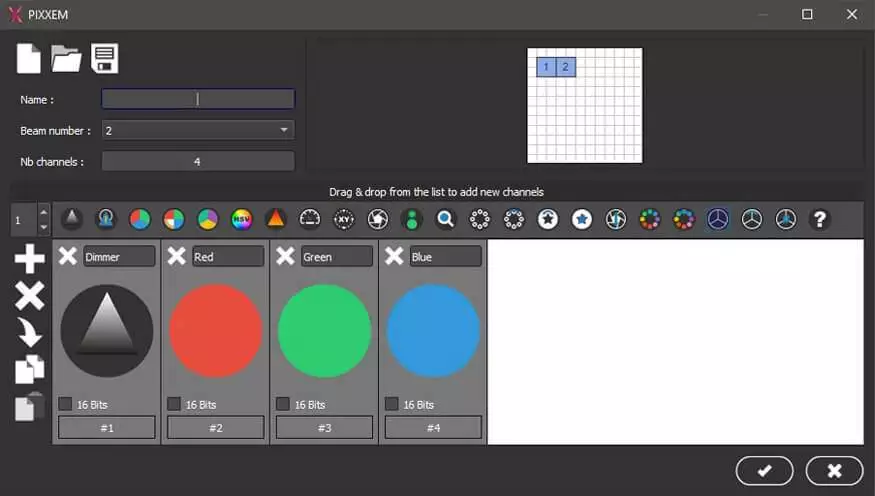

LED-UP easily creates a matrix including a mix of different fixture types, and also allows for custom channel layouts for the same fixture types. The software engine generates the project space from the custom patch, intelligently combining diverse DMX personalities, enabling advanced customized control possibilities.

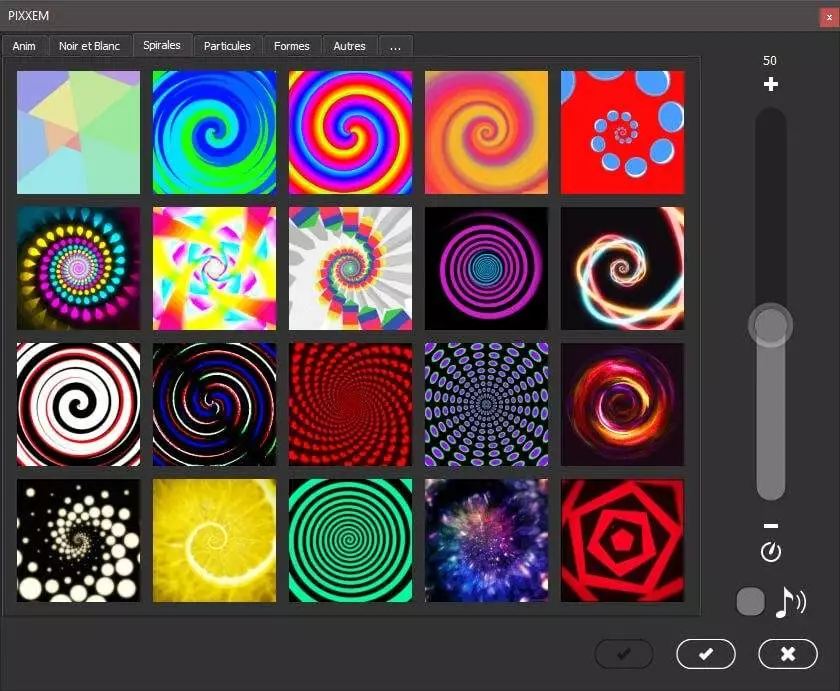

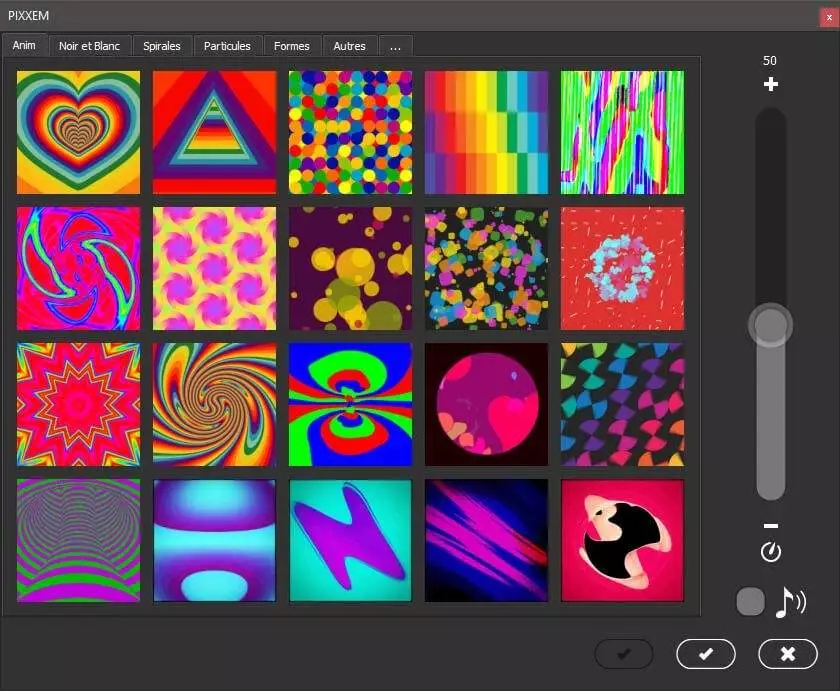

A rich assortment of 500 customizable effects, ranging from small & basic to large & complex. With the ability to combine multiple layers and play any video file format, Pixxem offers an unlimited number of creative possibilities.

Available effects:
Static Colors, Video Files, Animated GIF, Picture Files, Text Editor, Shape Editor and Sequencer, Graphics and Textures, Particles, Moving 3D Objects, 3D Matrix

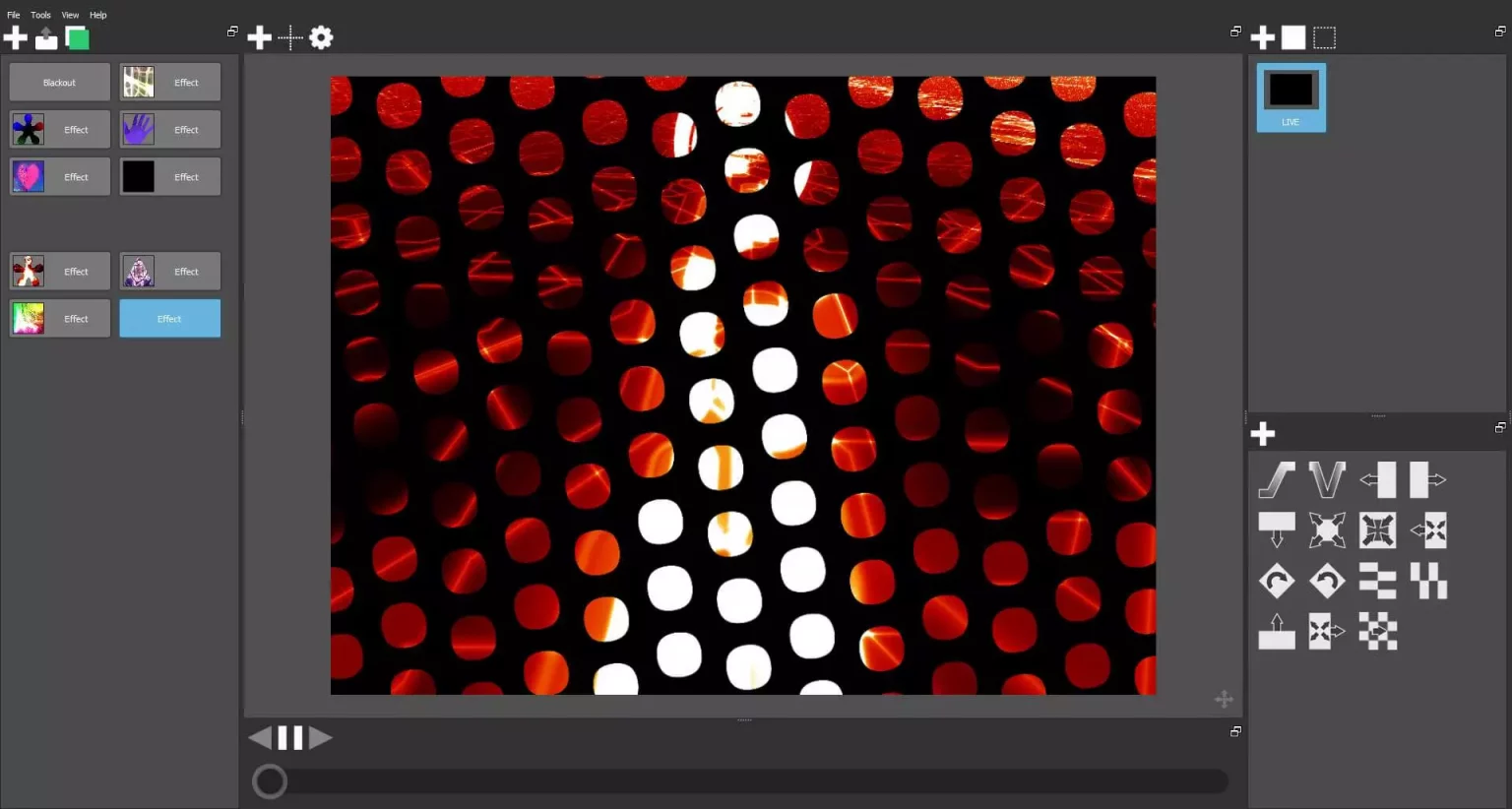

Combine multiple effect layers to generate amazing and unique graphic effects. Apply various filter effects (colors, negative, invert, etc.) to layers. Unleash your imagination and creativity without limitation.
